Reproduction Thumb Nuts for
Delta Cast Iron Stands - $16.50 each

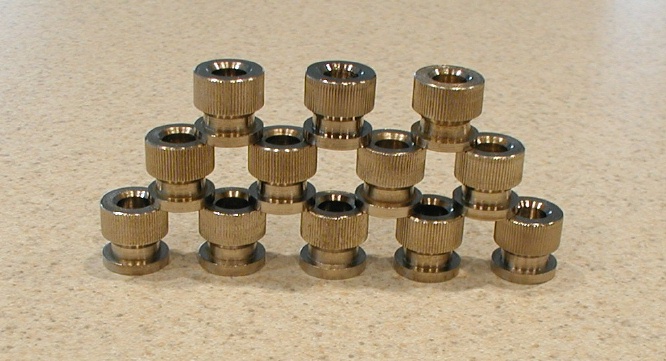

These fasteners hold on the panels for Delta cast iron stands. Found on machines like the 14" bandsaw and the 6" and 8" jointers, these guys are often either missing or chewed up from someone going crazy with the vice-grips. They correspond to old Delta part number NJ-283.

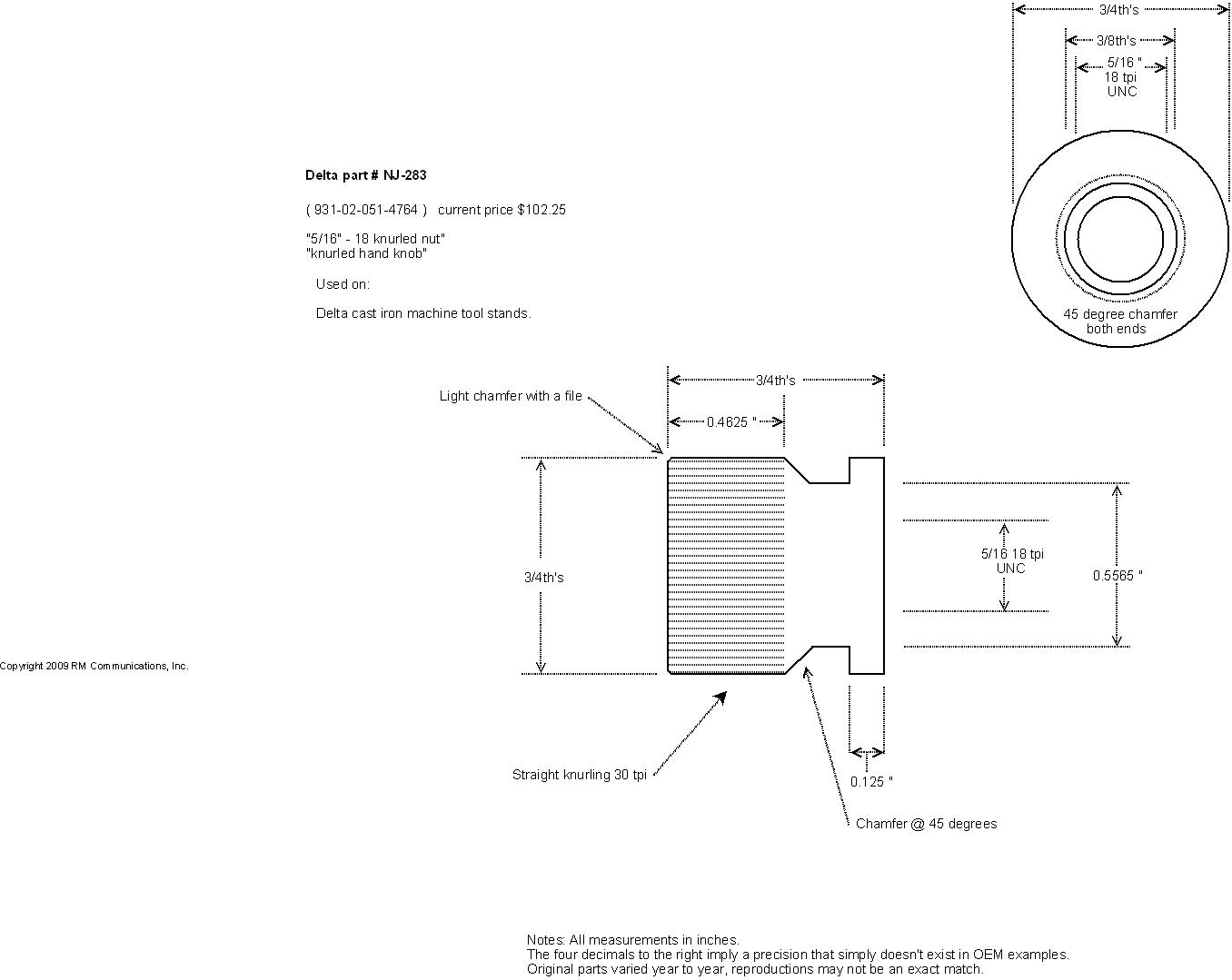

Threaded for 5/16's by 18 tpi, they are 3/4" diameter 3/4" height and made of nickel plated steel. $16.50 each plus shipping and handling. Technical drawing
-

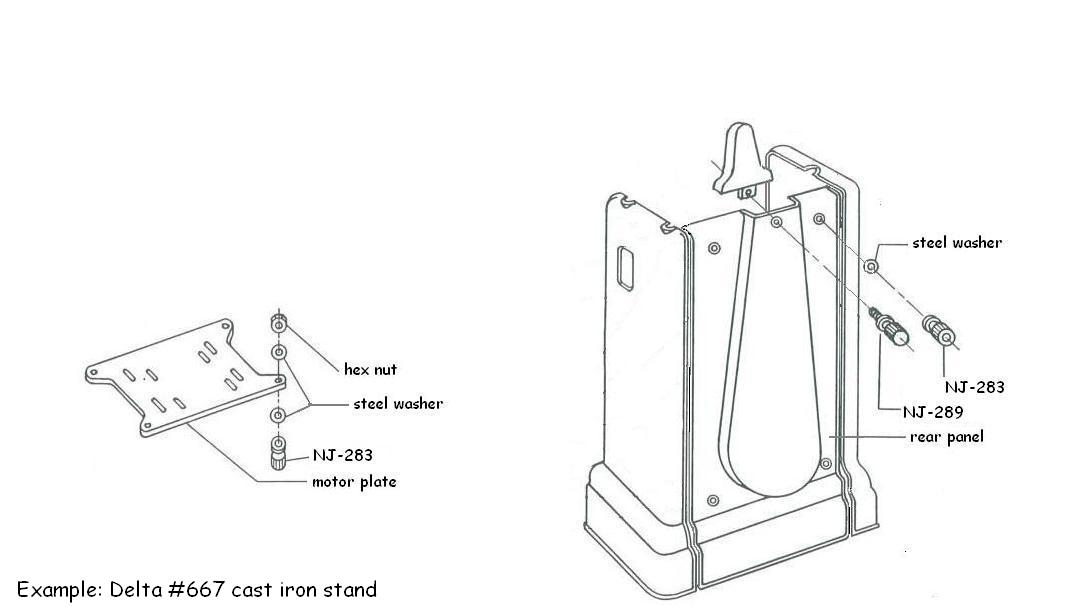

Applications:
-
6" and 8" jointer stands (cast iron)
-
Motor mounting plate for above stands (4 additional nuts)
-
14" bandsaw cast iron stand
-
6" by 48" stationary sander stand (8 nuts used)
-
Matching
thumb screw NJ-289
|
| NJ-283 Knurled Thumb Nut - |
